HOBART
plus

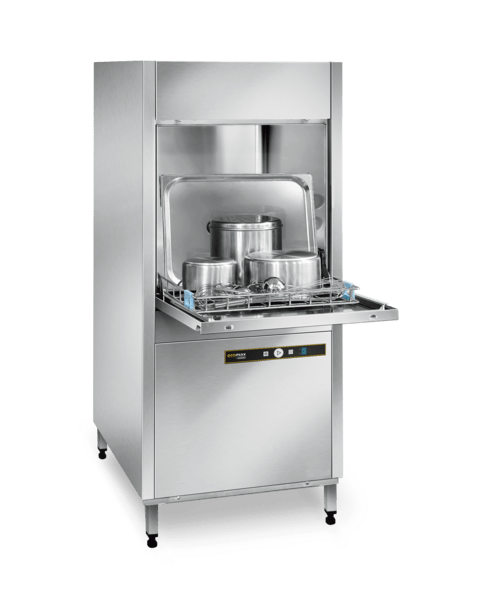

ecomax 702

Utensil washer

Features

  • Rotating top and bottom wash system to distribute the wash water evenly over the dishes
  • Deep-drawn wash tank bottom, no hygiene problems with corners and edges
  • Thermostop-function for guaranteed rinse temperatures
  • Removal of wash and rinse arms without any tools
  • Easy access to all parts
  • Flat surface of control panel
  • Loading of high trays and pots: up to 630 mm loading height
  • 150 mm floor clearance
  • Electronic control
  • Made completely out of stainless steel
  • Tank covered with strainer made of stainless steel

Standard equipment

  • Heater with thermostat control
  • Pressure pump
  • Electric cable, flexible water supply hose and drain hose



Connection to cold water or reduced voltage can extend the heating time and the programme runtime.
We recommend an external water softener for feed water hardness above 3°dH.
The installation of machines with integrated water softener requires a back flow safety device (at site) according to DVGW-DIN 1988.
Line pressure required: 0,5 to 10 bar

Variants

702-10A
ECOMAX 702-10A UTENSIL WASHER
Order no. 702-10A
basic model, please note: Racks need to be ordered separately

Technical data

Cycle times* 120 / 360 sec
Capacity per hour* up to 30 cycles
Wash / rinse temperature 60 - 65 °C / 85 °C
Tank capacity 80 l
Fresh water consumption / cycle 4.5 l
Wash pump 2.9 kW
Heating booster / tank 9 kW / 3.3 kW
Total loading 12 kW
Rated voltage 400 / 50 / 3
Width / Depth / Height 780 / 945 / 1,765 mm
Loading height 630 mm
Rack size 600 x 760 mm

*hot water connection

Accessories for this product

Drain pump (retrofit kit)
Order no. 04-005534-001
Rinse aid dispenser (retrofit kit)
Order no. 04-005535-001
Detergent dispenser (retrofit kit)
Order no. 04-005535-002
Rear side panel
Order no. 01-539720-001

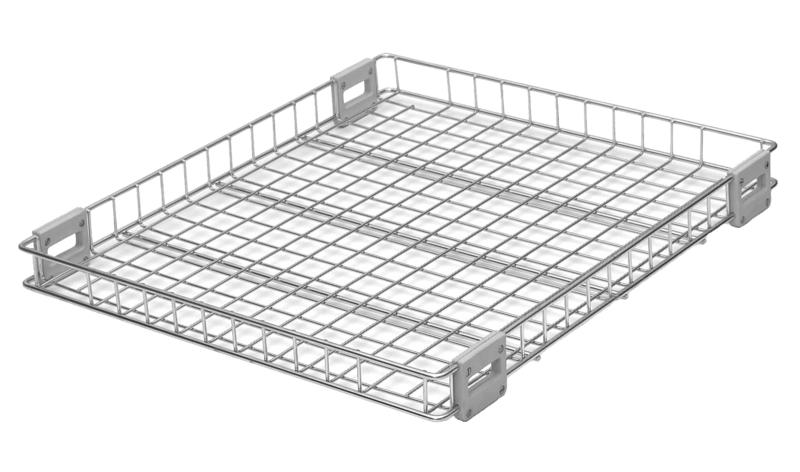

Basic rack
Order no. 01-510508-1
600 x 760 mm

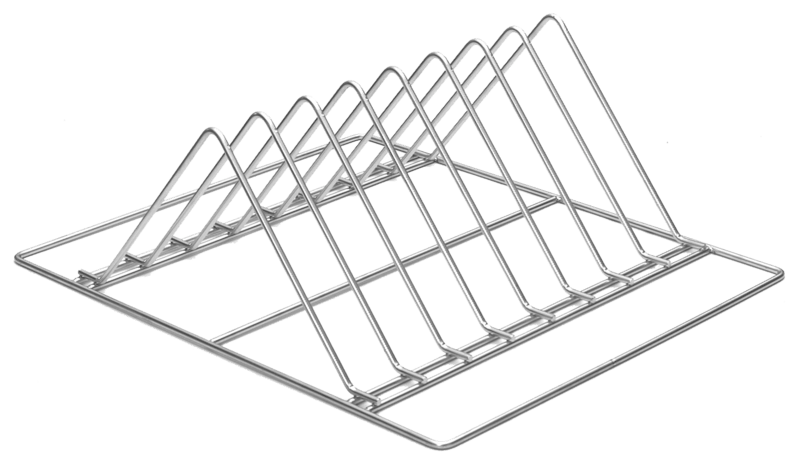

Insert for 8 sheets
Order no. 323637
568 x 625 mm, suitable for large sheets
Cutlery rack - 500 x 500 mm
Order no. C-01-07
500 x 500 mm for cutlery in horizontal position narrow mesh bottom, also usable as universal rack
Cutlery box
Order no. CB1
90 x 90 mm, plastic, loose, for appr. 20 pieces of cutlery
Cutlery rack - 230 x 230 mm
Order no. 01-246175-1
230 x 230 mm, plastic, with 4 compartments, for appr. 80 pieces of cutlery (4 x 20)
Universal flat rack - height 7 cm
Order no. B-00-07
with wide mesh bottom (for example for cutlery baskets for cutlery in upright position) height 7 cm
Universal flat rack - height 11 cm
Order no. B-00-11
with wide mesh bottom (for example for cutlery baskets for cutlery in upright position) height 11 cm
Universal flat rack - height 16 cm
Order no. B-00-17
with wide mesh bottom (for example for cutlery baskets for cutlery in upright position) height 16 cm
Plate rack
Order no. P-18-12
9 spaces, full peg, for 18 flat or 12 deep plates up to 260 mm diam. or 9 trays up to 470 mm
Cup insert
Order no. 694497
for sloped position, steel wire, plastic coated, for universal flat rack
