HOBART

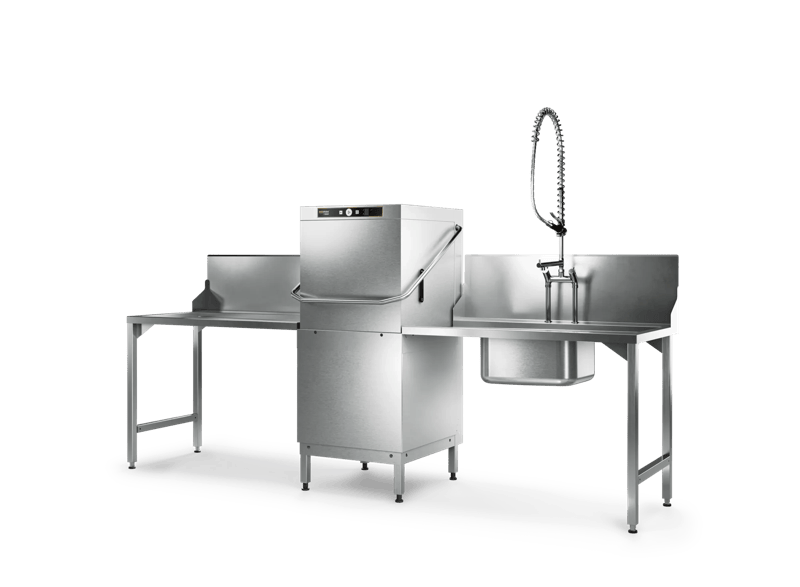

The hood-type dishwasher for ergonomic and efficient work processes in the kitchen, thanks to the single-button control on top and the all-around handle.

Features

  • The 4-sided closed hood keeps energy and humidity in the system
  • Single-button control with digital temperature indication, 3 programmes and further special cycles
  • Hygiene programme for hygienic cleanliness
  • Deep-drawn wash tank and intelligently designed interior for easy cleaning
  • Rotating wash and rinse arms for an even water distribution
  • Refill signal monitors fill level of external chemical containers with optional suction lances
  • Intended nozzles prevent blocking
  • Incl. connection cable, supply and drain hose for immediate operation
  • Thermostop function for guaranteed temperatures

Plus - Features

  • Single-button control with digital temperature indication
  • All-around handle for an ergonomic hood lift

Standard equipment

  • Plate rack P-18-12
  • Universal flat rack B-00-07
  • Cutlery rack CB8
  • Heater with thermostat control
  • Electric cable, flexible water supply hose and drain hose

Connection to cold water or reduced voltage can extend the heating time and the program runtime.
We recommend an external water softener for feed water hardness above 3°dH. The installation of machines with integrated water softener requires a back flow safety device (at site) according to DVGW-DIN 1988
Required supply pressure: with integral rinse pressure pump: 0.8 to 10 bar; without integral rinse pressure pump: 2 to 6 bar

Variants

H615-10E
ECOMAX PLUS H615W-10D HOOD-TYPE DISHWASHER
Order no. Eco+H615-10E
basic model incl. detergent and rinse aid dispenser, drain pump and rinse pressure pump
H615S-10E
ECOMAX PLUS H615SW-10D HOOD-TYPE DISHWASHER
Order no. Eco+H615S-10E
incl. softener

Technical data

Cycle times* 60 / 90 / 180 sec.
Rack capacity 60 /h
Tank capacity 23 l
Water consumption 2.0 l/rack
Wash pump 0.7 kW
Heating booster/tank H604-12C 6.1 (4.1**) kw / 2.5 kw - ** 230V/50Hz/1/N
Heating booster/tank H604-10C 5.5 (3.7**) kw / 2.5 kw - ** 230V/50Hz/1/N
Booster loading - Alternative 4.1 kW (230 V)
Heating booster/tank H604-33C 6.9 kW (400 V)
Total connected load - Alternative 4.8 kW (230 V)
Rated voltage 400 / 50 / 3N (230 / 50 / 1)
Width / Depth / Height 635 / 742 / 1510 (2000 open) mm
Loading height 440 mm
Rack size 500 x 500 mm

* The machine is equipped with an automatic cycle-time control which ensures hygienic rinse temperatures even on a cold-water supply or with reduced heating performance.

Accessories for this product

Back panel
Order no. 01-515948-001
Cutlery box
Order no. CB1
90 x 90 mm, plastic, loose, for appr. 20 pieces of cutlery
Cutlery rack - 230 x 230 mm
Order no. 01-246175-001
230 x 230 mm, plastic, with 4 compartments, for appr. 80 pieces of cutlery (4 x 20)
Cutlery rack - 500 x 500 mm
Order no. C-01-07
500 x 500 mm for cutlery in horizontal position narrow mesh bottom, also usable as universal rack
Universal flat rack - height 7 cm
Order no. B-00-07
with wide mesh bottom (for example for cutlery baskets for cutlery in upright position) height 7 cm
Universal flat rack - height 11 cm
Order no. B-00-11
with wide mesh bottom (for example for cutlery baskets for cutlery in upright position) height 11 cm
Universal flat rack - height 16 cm
Order no. B-00-17
with wide mesh bottom (for example for cutlery baskets for cutlery in upright position) height 16 cm
Plate rack
Order no. P-18-12
9 spaces, full peg, for 18 flat or 12 deep plates up to 260 mm diam. or 9 trays up to 470 mm
Cup insert
Order no. 00-694497-000
for sloped position, steel wire, plastic coated, for universal flat rack
