HOBART

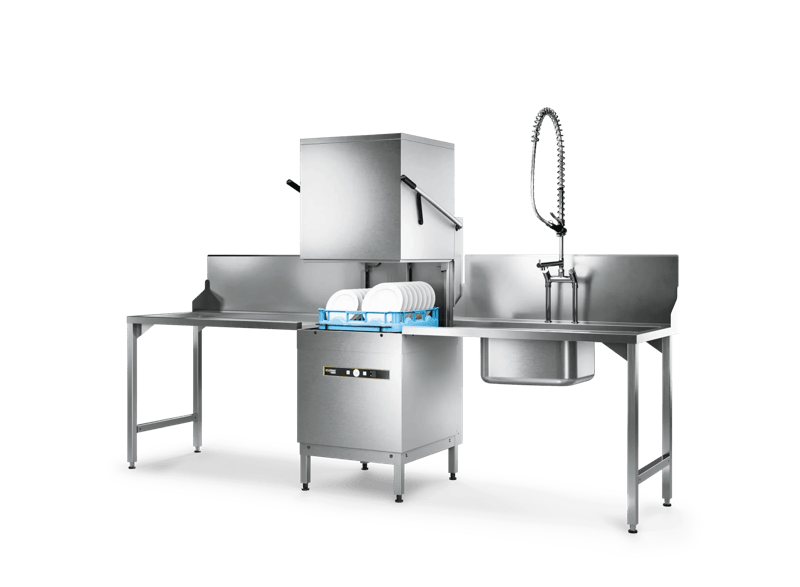

The ecomax hood-type dishwasher is, combined with tables, a powerful partner for the catering and hotel sector.

Features

  • The 4-sided closed hood keeps energy and humidity in the system
  • Single-button control with digital temperature indication, 3 programmes and further special cycles
  • Hygiene programme for hygienic cleanliness
  • Deep-drawn wash tank and intelligently designed interior for easy cleaning
  • Rotating wash and rinse arms for an even water distribution
  • Refill signal monitors fill level of external chemical containers with optional suction lances
  • Intended nozzles prevent blocking
  • Incl. connection cable, supply and drain hose for immediate operation
  • Thermostop function for guaranteed temperatures

Standard equipment

  • Plate rack P-18-12
  • Cutlery basket CB1
  • Rinse aid dispenser
  • Heater with thermostat control
  • Electric cable, flexible water supply hose and drain hose

Connection to cold water or reduced voltage can extend the heating time and the program runtime.
We recommend an external water softener for feed water hardness above 3°dH. The installation of machines with integrated water softener requires a back flow safety device (at site) according to DVGW-DIN 1988
Required supply pressure: with integral rinse pressure pump: 0.8 to 10 bar; without integral rinse pressure pump: 2 to 6 bar

Variants

H604-10C
ECOMAX H604-10C HOOD-TYPE DISHWASHER
Order no. Eco-H604-10C
Basic model
H604-12C
ECOMAX H604-12C HOOD-TYPE DISHWASHER
Order no. H604-12C
incl. rinse pump, detergent dispenser and drain pump
H604S-12C
ECOMAX H604S-12C HOOD-TYPE DISHWASHER
Order no. H604S-12C
incl. softener, rinse pump, detergent dispenser and drain pump
H604-33C
ECOMAX H604-33C HOOD-TYPE DISHWASHER
Order no. H604-33C
basic model without rinse aid dispenser, incl. back panel and rinse pump with 380/60/3. Please note: Racks need to be ordered separately

Technical data

Cycle times* 75 / 150 / 180 sec.
Rack capacity 48 /h
Tank capacity 23 l
Water consumption 2.0 l/rack
Wash pump 0.4 kW
Heating booster/tank H604-10C 5.5 (3.7**) kw / 2.5 kw - ** 230V/50Hz/1/N
Heating booster/tank H604-12C 6.1 (4.1**) kw / 2.5 kw - ** 230V/50Hz/1/N
Heating booster/tank H604-33C 10 kw / 2.2 kw
Rated voltage 400V/50Hz/3/N (230V/50Hz/1/N)
Width / Depth / Height 635 / 742 / 1,480 (1,960 open) mm
Loading height 440 mm
Rack size 500 x 500 mm

* The machine is equipped with an automatic cycle-time control which ensures hygienic rinse temperatures even on a cold-water supply or with reduced heating performance.

Accessories for this product

Back panel
Order no. 01-515948-001
Detergent dispenser (retrofit kit)
Order no. 01-539635-001
works also with 60 Hz
Drain pump (retrofit kit)
Order no. 01-539637-001
Drain pump
Order no. 04-006535-001
drain pump (retrofit kit) for 60 Hz
Cutlery box
Order no. CB1
90 x 90 mm, plastic, loose, for appr. 20 pieces of cutlery
Cutlery rack - 230 x 230 mm
Order no. 01-246175-001
230 x 230 mm, plastic, with 4 compartments, for appr. 80 pieces of cutlery (4 x 20)
Cutlery rack - 500 x 500 mm
Order no. C-01-07
500 x 500 mm for cutlery in horizontal position narrow mesh bottom, also usable as universal rack
Universal flat rack - height 7 cm
Order no. B-00-07
with wide mesh bottom (for example for cutlery baskets for cutlery in upright position) height 7 cm
Universal flat rack - height 11 cm
Order no. B-00-11
with wide mesh bottom (for example for cutlery baskets for cutlery in upright position) height 11 cm
Universal flat rack - height 16 cm
Order no. B-00-17
with wide mesh bottom (for example for cutlery baskets for cutlery in upright position) height 16 cm
Plate rack
Order no. P-18-12
9 spaces, full peg, for 18 flat or 12 deep plates up to 260 mm diam. or 9 trays up to 470 mm
Cup insert
Order no. 00-694497-000
for sloped position, steel wire, plastic coated, for universal flat rack
